Built Without an Approved Map? LDA Compounding Fee and Regularising a House
Real Estate Analyst
11 min read
A house built without an approved map can create problems when its owner receives an LDA notice, applies for a completion certificate or decides to sell. However, unauthorised construction does not automatically mean demolition.
The Lahore Development Authority (LDA) allows certain building violations to be resolved through prescribed procedures, including compounding. Eligibility depends on the construction, applicable regulations and official assessment.
This guide explains the LDA compounding fee, how to regularise a house built without a map in Lahore, the difference between compoundable and non-compoundable violations, and the documents homeowners may need.
For background on the authority, see our Lahore Development Authority Complete Guide.
Quick answers (October 2026):
- Can a house without an approved map be regularised? Possibly, subject to LDA's assessment.
- What is a compounding fee? A prescribed charge for resolving eligible building violations.
- Are all violations compoundable? No.
- Is there one fixed LDA compounding fee in 2026? No single rate covers every violation.
- Does paying the penalty legalise construction? Not without the required approval.
1. What Is an LDA Compounding Fee?
An LDA compounding fee is a charge imposed under applicable regulations when an eligible building violation is permitted to be settled.
A violation may arise when a homeowner constructs without an approved plan or builds differently from the sanctioned drawings.
| Term | Meaning |
|---|---|
| Approved building plan | Drawings sanctioned by the relevant authority |
| Building violation | Construction contrary to applicable approval or regulations |
| Compoundable violation | A deviation eligible for settlement under prescribed rules |
| Non-compoundable violation | A deviation not eligible for routine compounding |
| Revised building plan | Updated drawings submitted for official approval |
Important: Compounding is not an automatic right. LDA must determine whether the specific violation qualifies.
2. Built Without an Approved Map: What Happens?
Constructing a house without obtaining the required building-plan approval creates a compliance issue, even when the house is complete or occupied.
The authority may require the owner to submit drawings, explain deviations and complete the applicable approval process.
| Construction issue | Possible requirement |
|---|---|
| House built without approved map | Building-plan scrutiny and violation assessment |
| Construction differs from approved map | Revised drawings and applicable charges |
| Excess covered area | Eligibility review or corrective work |
| Additional unauthorised floor | Height and structural-safety assessment |
| Construction in mandatory open space | Compliance review and possible removal |
The outcome depends on the property's jurisdiction and the applicable building regulations.
Does every house without an approved map face demolition?
No. Some violations may be resolved through compounding or corrective work. Others may require alteration or removal.
The owner must obtain an official decision rather than assume that payment alone will settle the matter.

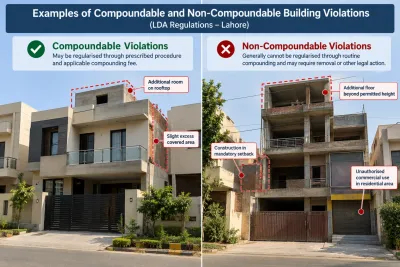

3. Compoundable vs Non-Compoundable Building Violations
Understanding this distinction is essential before calculating an LDA violation penalty.
Compoundable violations
These are deviations that the applicable regulations allow LDA to settle through the prescribed process.
Eligibility may depend on:
- The extent of excess construction
- Permitted covered area and setbacks
- Building height and number of floors
- Structural safety
- Land-use restrictions
- Applicable regulatory conditions
Non-compoundable violations
These cannot ordinarily be settled by paying a routine compounding charge.
LDA's published amended building regulations also describe procedures for exceptional consideration of certain violations. Such consideration remains subject to the relevant conditions and competent authority's decision.
| Violation | Main consideration |
|---|---|
| Excess covered area | Permitted coverage and compounding provisions |
| Setback encroachment | Mandatory open-space requirements |
| Additional floor | Height limits and structural safety |
| Unauthorised commercial use | Land-use and commercialisation requirements |
| Unsafe construction | Technical assessment and corrective measures |
A building plan violation fine should not be confused with a commercialisation fee. These address different regulatory matters.

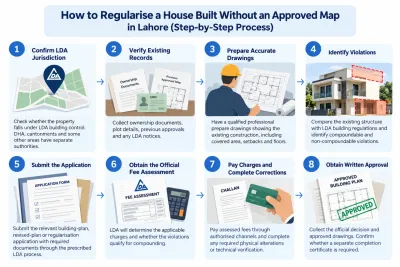

4. How to Regularise a House Built Without a Map in Lahore
The process varies according to the property and the violations involved.
Step 1: Confirm LDA jurisdiction
Check whether the property falls under LDA building control. DHA, cantonments and some other areas operate under separate approval authorities.
Step 2: Verify existing records
Collect ownership documents, plot details, previous approvals and any notices issued by LDA.
Determine whether the house was built entirely without approval or whether construction deviated from an existing sanctioned map.
Step 3: Prepare accurate drawings
Have a qualified professional prepare drawings showing the actual construction, including covered area, setbacks, floors and measurements.
Step 4: Identify violations
Compare the existing structure with the applicable building regulations.
Separate potentially compoundable deviations from construction requiring physical correction.
Step 5: Submit the application
Submit the relevant building-plan, revised-plan or regularisation application with supporting documents through the prescribed procedure.
Step 6: Obtain the official fee assessment
LDA must determine the applicable charges and whether the identified violations qualify for compounding.
Step 7: Pay charges and complete corrections
Pay assessed fees through authorised channels. Complete any required alterations or technical verification.
Step 8: Obtain written approval
Collect the official decision and approved drawings. Confirm whether a separate completion certificate is required.
What this means for homeowners: A submitted application or paid challan does not, by itself, prove that the house has been regularised.
5. LDA Compounding Fee Calculation in 2026
The payable amount depends on the violation, applicable regulatory provisions and official assessment.
There is no single verified LDA compounding fee rate for 2026 that can be applied to every house.
Milkiyat.com Finding: Illustrative Calculation
Consider a hypothetical house with 120 square feet of construction that LDA determines is eligible for compounding.
Assume, purely for illustration, a rate of Rs1,000 per square foot.
| Item | Illustrative amount |
|---|---|
| Eligible construction area | 120 sq ft |
| Assumed rate | Rs1,000 per sq ft |
| Calculated penalty | Rs120,000 |
| Other applicable charges | Subject to official assessment |
Calculation: 120 × Rs1,000 = Rs120,000
Disclaimer: Rs1,000 per square foot is an assumed figure, not a verified LDA rate. The example explains the calculation method only.
Actual costs may also include scrutiny fees, professional drawings and required construction corrections.
Milkiyat.com finding: Two houses of similar size can face different costs because their violations, eligibility and corrective requirements may differ.
6. Documents Required for House Regularisation
The required documents depend on the property and application type.
| Document | Purpose |
|---|---|
| Ownership or allotment documents | Establish property particulars |
| Applicant's CNIC | Identity verification |
| Previously approved map, if available | Compare approved and existing construction |
| Existing-condition drawings | Show actual building dimensions |
| Application form | Request official assessment |
| Professional certificates, where required | Address technical or safety conditions |
| LDA violation notices | Identify pending proceedings |
| Payment challans | Record assessed payments |
Additional documents or NOCs may be required in individual cases.
What if the original approved map is missing?
First establish whether approval was previously granted.
If an approved plan exists, seek verification from the responsible authority. If construction was never approved, the applicable unauthorised-construction procedure must be followed.
7. Can LDA Demolish Construction Without an Approved Map?
LDA has statutory enforcement powers concerning unauthorised construction under the LDA Act, 1975.
Depending on the violation and applicable procedure, enforcement may involve notices, required alterations, sealing or demolition.
Receiving a notice does not mean that every violation can be resolved by paying a penalty.
What should happen after an LDA notice?
The property owner should establish:
- Which construction is alleged to violate the rules
- Whether an approved building plan exists
- What response or correction the notice requires
- Whether compounding is legally available
- What written decision the authority issues
Keep copies of notices, submitted documents and official correspondence.
For related procedures, see LDA Sealed Property and De-Sealing Process.
8. Does Paying a Compounding Fee Guarantee a Completion Certificate?
No. Different approvals serve different purposes.
| Document | What it establishes |
|---|---|
| Approved building plan | Authorised construction drawings |
| Compounding approval | Resolution of specified eligible violations |
| Revised approved plan | Authorised changes to the original plan |
| Completion certificate | Compliance under the applicable completion procedure |
A homeowner may still need inspections, corrections or additional documents after paying a compounding fee.
The final approval should clearly identify the construction that has been accepted.
9. Buying a House Without an Approved Map
An occupied house can still have unresolved building violations.
These issues may create expenses or complications during renovation, resale or future approval applications.
| Warning sign | What to verify |
|---|---|
| Seller cannot provide approved map | Official building-plan record |
| Additional floor | Applicable height and approval requirements |
| Covered setbacks | Permitted construction limits |
| Outstanding LDA notice | Current enforcement status |
| Seller shows penalty receipt only | Written compounding or regularisation approval |
| Missing completion certificate | Applicable certification requirements |
Who pays an outstanding LDA violation penalty?
The buyer and seller should establish responsibility before completing the transaction.
A penalty receipt is not a substitute for confirmation that the violation has been resolved.
What this means for buyers: The cost of correcting unauthorised construction can exceed the initial penalty assessment.
10. House Regularisation Checklist
Before treating a property as regularised, verify the following:
- Responsible building-control authority confirmed
- Ownership and plot records checked
- Previous approved map verified, if available
- Actual construction accurately measured
- Building violations identified
- Compounding eligibility assessed
- Official fee assessment obtained
- Required drawings and certificates submitted
- Assessed charges paid through authorised channels
- Physical corrections completed where required
- Written approval collected
- Completion-certificate requirements checked
Milkiyat.com rule of thumb: A house should not be considered regularised solely because its owner has paid an LDA violation penalty. Verify the final written approval and applicable building record.
Frequently Asked Questions
What is the LDA compounding fee?
It is a prescribed charge for settling building violations that qualify for compounding under applicable regulations.
Can I regularise a house built without an approved map in Lahore?
Possibly. Eligibility depends on the actual construction, applicable regulations and LDA's decision.
What is the LDA compounding fee in 2026?
The amount depends on the violation and official assessment. No single verified rate applies to every case.
Are all building violations compoundable?
No. Certain violations may require physical correction, removal or another legally available procedure.
Is paying a building plan violation fine enough?
No. The owner must also satisfy applicable conditions and obtain the required written approval.
Can an additional floor be regularised?
Only if the applicable rules and competent authority permit an authorised resolution.
Can LDA demolish unauthorised construction?
Yes. LDA has enforcement powers, subject to the applicable statutory procedure.
Can I sell a house without an approved map?
Such a transaction may involve unresolved regulatory risks. The building's approval and violation status should be verified.
Is compounding the same as commercialisation?
No. Compounding concerns eligible building violations, while commercialisation concerns permission for a particular land use.
Where can I verify LDA regulations?
Use the official LDA website and its published building regulations.
Editor's note (10 October 2026): Compounding eligibility, applicable charges and approval requirements depend on the current regulatory framework and individual property assessment. The calculation in this article is hypothetical and must not be treated as an official LDA fee quotation.
