Margalla Enclave Plot Demarcation & Site Survey: What Buyers Should Verify
Real Estate Analyst
9 min read
This guide explains how to verify Margalla Enclave plot boundaries, compare site measurements with layout documents, and assess potential measurement discrepancies before buying.
Overview
An allotment or intimation letter identifies a booking, but does not show every corner on the ground. Demarcation marks boundaries against the relevant layout, while an independent site survey measures the plot against the plan and documents the findings. Neither proves ownership or guarantees possession and utilities.
This guide helps buyers compare a plot, check seller claims and decide what to verify. For wider project context, read the Margalla Enclave Islamabad guide.
You can also browse Margalla Enclave plots to explore listings. Remember, property listings are leads, not official evidence of plot boundaries or ownership.
1. Allotment, possession, demarcation and survey are different
| Step | What it means | What it can establish | What it does not establish by itself |
|---|---|---|---|
| Allotment or intimation | A record identifying the booked plot | The plot reference stated in the document | Exact ground corners, ownership history or transfer permission |
| Possession | Formal handover under the applicable process | That handover has been recorded | That all utilities are active or dimensions have been independently checked |
| Demarcation | Boundary points marked against the relevant plan | Where the responsible office places the boundary | That every mark has been independently checked against the ground |
| Independent survey | Measurements taken by a surveyor you appoint | Whether measured sides, corners and levels match the supplied reference | Legal title or the authority’s acceptance of a discrepancy |
| Written record | A dated report, photographs and correspondence | Evidence of what was checked and reported | A guarantee of any outcome in a dispute |
Before arranging work, confirm whether the exact plot is eligible for possession and demarcation. Status can differ by street and change over time, so check the latest development and possession status guide and ask the relevant office about the specific plot.
2. Collect the right documents before measuring
Collect the allotment or intimation letter, the applicable layout page, stated dimensions and category, payment statement, and relevant possession or transfer paperwork. Confirm the seller’s identity and authority to transfer. If documents and map labels differ, ask DHA which layout version applies.
The project assessment records layout revisions, so a dealer’s cropped or resized screenshot may be outdated. Keep the complete file, source and date. A marketing plan helps with orientation but does not prove approval, plot boundaries or transfer rights. See the Margalla Enclave plot map guide for map-reading checks.

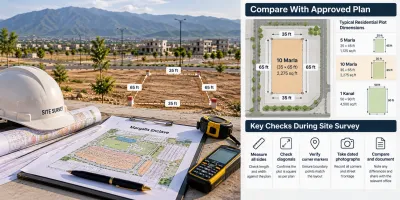

3. What plot dimensions should you compare?
The project assessment lists these residential plot dimensions. Use them as reference figures only; the applicable official record for the individual plot takes priority.
| Plot category | Stated dimensions | Calculated area | Important check |
|---|---|---|---|
| 5 marla | 25 × 45 ft | 1,125 sq ft | Confirm both sides against the plot-specific record |
| 10 marla | 35 × 65 ft | 2,275 sq ft | Check the recorded category and dimensions; nominal marla labels may be rounded |
| 1 kanal | 50 × 90 ft | 4,500 sq ft | Confirm the full boundary, not only frontage |
The cited schedule lists 6,990 plots, with 10 marla and 1 kanal accounting for about 75.6% of the total. This project-wide mix does not establish an individual plot’s location or availability. For more size context, see the plot sizes guide.
4. How to arrange and review an independent survey
For a high-value purchase, consider an independent, qualified surveyor. Confirm credentials, scope and fee in advance, and ask for a written report. Clarify whether the job is a measurement check, a formal demarcation request or a survey for submission to an authority.
Use this workflow:
- Share the correct reference. Provide the relevant layout page and plot-specific documents before the visit.
- Agree the scope. Ask the surveyor to measure the sides, corner positions, diagonals and ground levels where relevant.
- Attend the site visit. If you cannot attend, appoint someone you trust and ask for dated records.
- Record the results. Obtain measurements in feet and inches, a sketch or plan, and dated photographs of boundary marks and road frontage.
- Compare like with like. Check that the surveyor measured the same plot and used the correct layout version and plot category.
- Ask about differences. Request an explanation for each discrepancy rather than assuming it is an error or an accepted tolerance.
- Keep a written trail. Send unresolved issues to the relevant office in writing and retain the reply with the survey report.
For a rectangular plot, the diagonal is the square root of width squared plus depth squared. Reference diagonals are about 51.5 ft for 25 × 45 ft, 73.8 ft for 35 × 65 ft and 103.0 ft for 50 × 90 ft. These are mathematical examples only. A plot with a different approved shape, such as some corner plots, must be checked against its own plan rather than this simple rectangle calculation.
5. What could a measurement shortfall be worth?
A shortfall can matter financially, but this calculation does not decide acceptability or remedy. Prices below are illustrative historical figures from the supplied draft, not verified current offers.
| Plot category | Illustrative price | Reference area | Approx. price per sq ft | Approx. value of 50 sq ft |
|---|---|---|---|---|
| 5 marla | Rs 25,000,000 | 1,125 sq ft | Rs 22,222 | Rs 1.11 million |
| 10 marla | Rs 49,000,000 | 2,275 sq ft | Rs 21,538 | Rs 1.08 million |
| 1 kanal | Rs 85,000,000 | 4,500 sq ft | Rs 18,889 | Rs 0.94 million |
Worked example: Suppose a plot recorded as 35 × 65 ft measures 34.5 × 64.5 ft. Multiplying those measured sides gives 2,225.25 sq ft, approximately 49.75 sq ft below the 2,275 sq ft reference area. At the illustrative rate of Rs 21,538 per sq ft, that difference is worth roughly Rs 1.07 million. The calculation assumes a simple rectangular shape and uses an illustrative rate; it is not a valuation or a claim that compensation is due.
If a survey indicates a shortfall, ask the responsible office in writing about the measurement method, any tolerance and the resolution process. Do not assume compensation or settle a dispute using this estimate alone. Compare current context in the plot price tracker, checking unpaid instalments and other charges.
6. Record ground conditions as well as dimensions
Area is not the only consideration. Ask the surveyor to record ground levels, slope, road frontage, drains, channels, poles, trees, retaining structures and nearby fences or construction. Compare road and plot levels; differences may affect access, drainage or building design.
The wider site’s terrain does not establish the slope of a specific plot. An engineer or authority may be needed to assess construction implications.
7. Red flags to resolve before proceeding
Pause and seek clarification if any of the following occurs:
- The plot number or street on the documents does not match the map or site reference.
- The seller cannot provide the relevant plot documents or a complete layout source.
- Boundary marks are missing, loose or inconsistent with the survey.
- Measured dimensions differ materially from the plot-specific reference.
- A neighbour’s fence or construction appears to cross the claimed boundary.
- You are pressured to accept possession or pay before a discrepancy is explained in writing.
- The person arranging the survey will not provide a signed report or dated photographs.
A discrepancy is not automatically fraud, and matching measurements do not prove ownership. Record the facts, request an official explanation and seek professional advice when needed.
8. What to keep in your purchase file
Keep the allotment letter, layout and version date, transfer documents, payment statement, survey report, dated photographs, possession note and written replies together. Note who supplied each document and when.
When comparing properties, record the asking price, unpaid instalments, transfer costs and possession status. Use Islamabad property listings for context, but compare the full cost rather than headline prices alone.
Frequently asked questions
What is plot demarcation?
It is the marking of a plot’s boundaries on the ground against the applicable layout or reference. Ask which office is responsible and whether the plot is eligible for the process.
Do I need an independent survey if the plot has been demarcated?
An independent survey can provide a separate measurement check. Whether it is necessary depends on the transaction, documents and any uncertainty about the boundaries. It does not replace official records.
Does a survey prove ownership?
No. A survey checks measurements within its scope; ownership, transfer eligibility, dues and possession require separate records.
What should I do if the dimensions do not match?
Ask the surveyor to document the difference, retain dated photographs and submit a written query to the relevant office. Do not assume a refund, tolerance or compensation rule without confirmation.
Related Margalla Enclave guides
- Margalla Enclave Plot Map Guide: How to Read Sector, Street and Plot Numbers
- Margalla Enclave Plot Sizes and Dimensions
- Margalla Enclave Development and Possession Status
Sources to verify before publication
- Environmental Impact Assessment of the Margalla Enclave Project, Pak-EPA — cited for the plot schedule and layout revisions.
- DHA Islamabad–Rawalpindi official Margalla Enclave website — use for current official notices and procedures.
- Margalla Enclave Islamabad guide on Milkiyat — the supplied draft cited this for ballot-price context; confirm figures and date before republishing them.
Disclaimer: This article is general information only. Prices, procedures and possession status can change. Verify plot identity, ownership, transfer eligibility, dimensions, dues and possession with relevant authorities and qualified professionals before deciding.
